Isspro EV2 Programmable Output Driver
Control an external device, such as your water-meth injection, electric fan, or nearly anything else, based upon set points you setup in your EV2 gauge with the ISSPRO Programmable Output Driver!

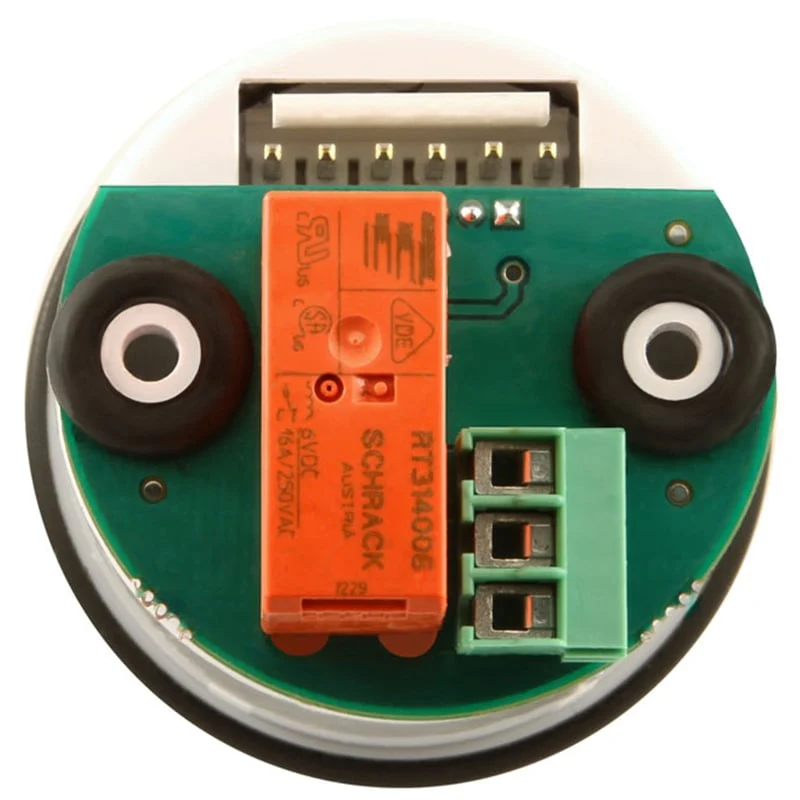

The Output Driver Module easily mounts to the back of the gauge and features an output which can switch up to 10 amps on or off at a programmable set point, independent of the gauge's programmable warning light.
Application examples include engaging an electric cooling fan when coolant temperature exceeds a specific level, or shutting down an engine if oil pressure drops below a set level.
The Output Driver Modules may also be wired in series so multiple factors can be monitored together. Units wired in series could be used to turn on water injection if boost and EGTs simultaneously exceed programmed levels, for example.
The functionality of the module is selected using the same simple R82003 Attribute Programmer Cable and programming software that is used to set the warning light levels on ISSPRO EV2 gauges. Thus, if you do not currently have the R82003 Cable, you will need to purchase it from the drop down menu above.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Control an external device, such as your water-meth injection, electric fan, or nearly anything else, based upon set points you setup in your EV2 gauge with the ISSPRO Programmable Output Driver!
The Output Driver Module easily mounts to the back of the gauge and features an output which can switch up to 10 amps on or off at a programmable set point, independent of the gauge's programmable warning light.
Application examples include engaging an electric cooling fan when coolant temperature exceeds a specific level, or shutting down an engine if oil pressure drops below a set level.
The Output Driver Modules may also be wired in series so multiple factors can be monitored together. Units wired in series could be used to turn on water injection if boost and EGTs simultaneously exceed programmed levels, for example.
The functionality of the module is selected using the same simple R82003 Attribute Programmer Cable and programming software that is used to set the warning light levels on ISSPRO EV2 gauges. Thus, if you do not currently have the R82003 Cable, you will need to purchase it from the drop down menu above.
